Motor Types and Technical Features
Motor Types and Technical Features
DWP series is the Hollow direct drive synchronous motor with high torque, low pulsation, and high efficiency.
Its bearing scheme is specially designed to withstand higher axial and radial loads.
The motor is equipped with a multi-turn absolute encoder, a serial communication mode, and an external battery to ensure accurate absolute position even during power failure.
Product Applications
Product Applications
Semi-conductor Grinding Machine
Semi-conductor Cleaning Machine
Technical Specifications
Technical Specifications
Motor type | ■ | Permanent magnet synchronous motor | |
Voltage class | ■ | 200 V (standard), 400 V (optional) | |
Work duty | ■ | S1 | |
Cooling | ■ | Water-cooling(standard),self-cooling(optional) | |
Protection | ■ | IP67 | |
Insulation | ■ | F | |
Vibration | ■ | R | |
Ambient temperature | ■ | 0~40℃(altitude≤1000m) | |
Encoder | ■ | Standard: absolute encoder |
Model Description
Model Description
Example: DWP12A006.25.48.2.W.E23M
DWP | ■ | Motor serial No. | |
12 | ■ | Frame No. | |
A | ■ | Height code | |
006 | ■ | Peak torque (N.m): 006: 6 N.m | |
25 | ■ | Rated speed (×100 r/min) 25: 2,500r/min | |
48 | ■ | Maximum speed (×100 r/min) 48: 4,800 r/min | |
2 | ■ | Voltage class: 2: three-phase 200 V, 4: three-phase 380 V | |
W | ■ | Cooling: W: water-cooling, /: self-cooling | |
E23M | ■ | Encoder: E17M, 17 bit multi-turn/E23M, 23 bit multi-turn |
User Interface
User Interface
Motor power connection:
The 300 mm long 4-core power cable is directly lead out from the inside of the motor.
Red 一 U Blue 一 V White 一 W Yellow green 一 GND
Encoder: hollow absolute encoder wiring definition
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| NC | NC | 485+ | 485- | Battery + | Battery GND | 5V | GND |
| \ | \ | White | Blue | Green | Yellow | Black | Red |
Connection: The 300 mm long encoder cable is directly lead out from the inside of the motor.
The motor is water-cooled (suffix: W) with water inlet parameters as follows:
Cooling medium: 55% glycol aqueous solution, particles less than 300 μm, conductivity less than 10 μS/cm;
Minimum cooling water flow: 12 L/min−20 L/min
Differential pressure under minimum cooling water flow: 0.27 bar
Maximum withstand water pressure: 0.5 MPa
Water pipe fitting specification: DWP12:14-G1/4 DWP12:16-G3/8
Differential pressure under minimum cooling water flow: 0.27 bar
Maximum withstand water pressure: 0.5 MPa
Water pipe fitting specification: DWP12:14-G1/4 DWP12:16-G3/8
DWP12
DWP12
Technical parameter
Motor type | Rated torque | Rated speed | Rated power | Rated current | Maximum speed | Peak torque | Peak current | Torque constant | Back EMF | Rated frequency |
Nm | r/min | kW | A | r/min | Nm | A | Nm/A | V/Krpm | Hz | |
DWP12A006.25.48.2(W) | 1.55 | 2500 | 0.406 | 3.54 | 4800 | 6.6 | 14.5 | 0.490 | 29.7 | 208.3 |

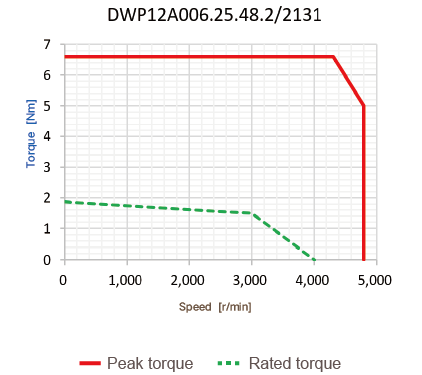

Characteristic curve
Motor type | Moment of inertia | Allowable radial load | Rated axial load |
kgm2 | (rated speed) N | (rated speed) N | |
DWP12A006.25.48.2(W) | 3.3*10^-4 | 230 | 130 |
Motor dimension drawing
DWP15
DWP15
Technical parameter
Motor type | Rated torque | Rated speed | Rated power | Rated current | Maximum speed | Peak torque | Peak current | Torque constant | Back EMF | Rated frequency |
Nm | r/min | kW | A | r/min | Nm | A | Nm/A | V/Krpm | Hz | |
DWP15A013.20.40.2(W) | 3.6 | 2000 | 0.754 | 7.3 | 4000 | 13 | 31.5 | 0.54 | 31.7 | 166.7 |
Characteristic curve
Motor type | Moment of inertia | Allowable radial load | Rated axial load |
kgm2 | (rated speed) N | (rated speed) N | |
DWP15A013.20.40.2(W) | 10.2*10^-4 | 530 | 180 |
Motor dimension drawing
