HSB series is a high-speed asynchronous motor, which can run reliably at high speed for a long time, with low noise and long service life. It is typically used in woodworking edge bander, door-motor, etc.
HSP series is a high-speed asynchronous motorized spindle, which adopts P4 precision angular contact bearing group. It can withstand axial force and has higher precision.
Product Applications
Product Applications
Double end milling
Edge banding machine
Portal crane
Machining center
Technical Specifications
Technical Specifications
| Motor type | Three-phase induction motor | |
| Serial number | HSB series | HSP series |
| Number of poles | 2 | |
| Voltage | 380V/220V | |
| Protection | IP54 | |
| Cooling | Fan cooling | |
| Vibration | SR | |
| Ambient temperature | -15℃~40℃（altitude≤1000m） | |
| Spindle end radial run-out | 15μ | 5μ |
| Spindle end axial movement | 50μ | 5μ |
Model Description
Model Description

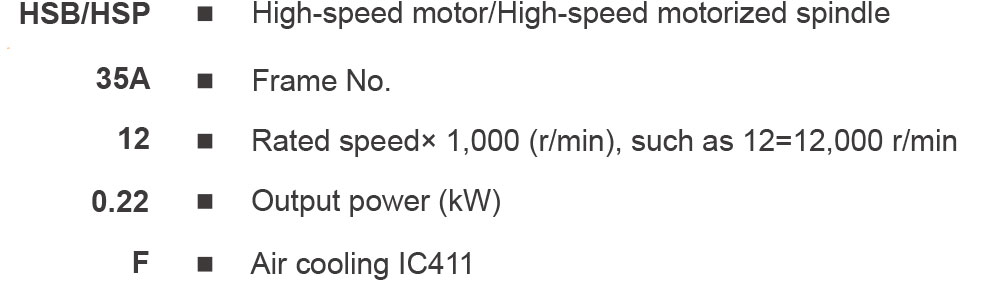

Example: HSB35A-12-0.22-F
Product Technical Parameters
Product Technical Parameters
HSB35 technical parameters
Motor outline drawing
Note: 1. The standard motor is horizontal type and its main leads are at the top.
2. The spindle head may be modified according to the actual situation of the user, but the spindle diameter shall not exceed Φ20.
Product Technical Parameters
Product Technical Parameters
HSB55 technical parameters
Motor outline drawing
Note: 1. The standard motor is horizontal type and its main leads are at the top.
2. The spindle head may be modified according to the actual situation of the user, but the spindle diameter shall not exceed Φ33.
Product Technical Parameters
Product Technical Parameters
HSP55 technical parameters
Motor outline drawing
Note: 1. The standard motor is horizontal type and its main leads are at the top.
2. The spindle head may be modified according to the actual situation of
the user, but the spindle diameter shall not exceed Φ33.
Product Technical Parameters
Product Technical Parameters
HSP75 technical parameters
Motor outline drawing
Note: 1. The standard motor is horizontal type and its main leads are at the top.
2. The spindle head may be modified according to the actual situation of the user.
