Motor Types and Technical Features

SA series permanent magnet synchronous motors are suitable for the application of high dynamic feed servo,
and has the following features:
    - Low ripple, low harmonic component, high speed stability
    - Large instantaneous torque of the motor (Tmax/Ted ≥ 3.5) and medium inertia rotor, which make it have high                         acceleration and deceleration characteristics and servo tracking
    - Matching high-resolution serial encoder (17-bit, 23-bit, 25-bit)
    - IP67 protection structure
    - Applicable to water mist, cutting fluid spray and other applications
    - Complete motor specifications: 0.2 kW−15 kW
    - Configurable permanent-magnet brake with low response time and zero backlash

Product Applications

半导体晶圆刀轮切割设备_02
                                                CNC Lathe                                                                                     Vertical Machining Center

0_02
                                               Bending Machine                                                                        Manipulator/Arm Robot

Technical Specifications

资源 1mdpi

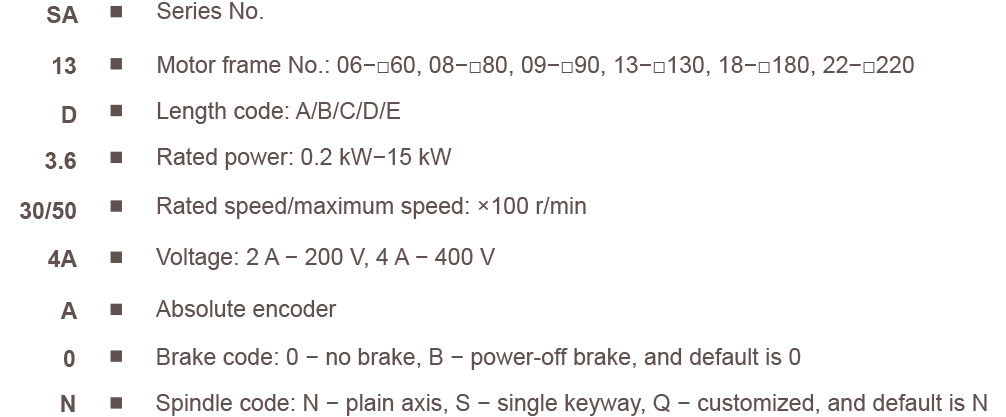

Model Description

Example: SA 13 D-3.6-30/50-4A-A0N
英文版SA产品页_02

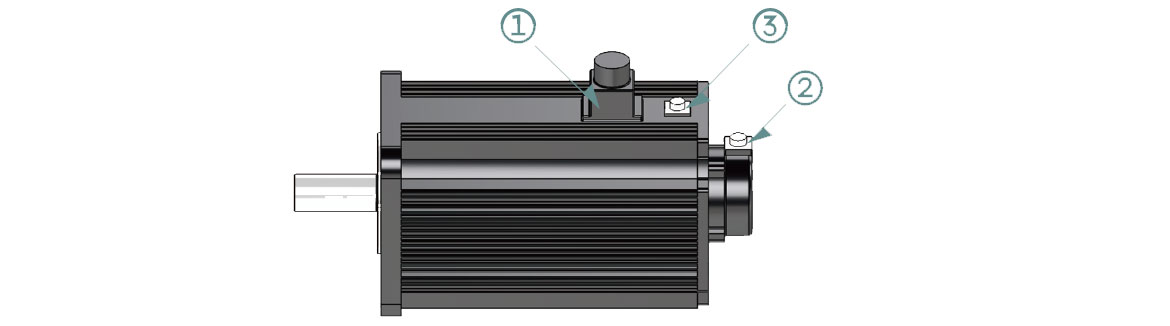

User Interface

SA产品概览-拷贝_29
① Power wiring
Power connector for SA06/08 without brake:
英文版SA产品页_04
Connector model: GM1311/P-4B
Power connector for SA06/08 without brake:
英文版SA产品页_05
Connector model: GM1311/P-4B
Power aviation connector for SA09:
英文版SA产品页_06
Connector model: SC-MC4S-A1-42
Power aviation connector for SA13/18/22:
英文版SA产品页_07
Connector model: - SA13: SMS3108A18-10SI
                              - SA18: SMS3108A22-22SI
                              - SA22: SMS3102A22-22SI
② Encoder
Encoder connector for SA06/08
英文版SA产品页_08
Connector model: GM1311/P-6A
Encoder aviation connector for SA09/13/18/22
英文版SA产品页_09
Connector model: SC-CMV1-AP10C4
③ Brake
Brake connector for SA06/08:
英文版SA产品页_10
Connector model: GM1311/P-4B
Brake connector for SA09:
英文版SA产品页_11
Connector model: SC-MC2S-A1
Brake aviation connector for SA13/18/22:
英文版SA产品页_12
Connector model: SC-CMV1-AP02C

Product Technical Parameters

SA06 technical parameters
英文版SA产品页_13
Note: the rated torque refers to the continuous allowable torque when the product is installed on the 250*250*6 aluminum heat sink at the allowable ambient temperature (40°C). In the column of rotor inertia, the value in brackets is the rotor inertia with brake.

Characteristic curve
英文版SA产品页_14
Motor outline drawing
英文版SA产品页_15

Product Technical Parameters

SA08 technical parameters
英文版SA产品页_16
Note: the rated torque refers to the continuous allowable torque when the product is installed on the 250*250*6 aluminum heat sink at the allowable ambient temperature (40°C). In the column of rotor inertia, the value in brackets is the rotor inertia with brake.

Characteristic curve
英文版SA产品页_17
Motor outline drawing
Sa

Product Technical Parameters

SA09 technical parameters
英文版SA产品页_19
Note: the rated torque refers to the continuous allowable torque when the product is installed on the 250*250*6 aluminum heat sink at the allowable ambient temperature (40°C). In the column of rotor inertia, the value in brackets is the rotor inertia with brake.

Characteristic curve
英文版SA产品页_20
Motor outline drawing
英文版SA产品页_21

Product Technical Parameters

SA13 technical parameters
英文版SA产品页_22
Note: the rated torque refers to the continuous allowable torque when the product is installed on the 400*400*20 aluminum heat sink at the allowable ambient temperature (40°C). In the column of rotor inertia, the value in brackets is the rotor inertia with brake.

Characteristic curve
英文版SA产品页_23
Motor outline drawing
英文版SA产品页_24

Product Technical Parameters

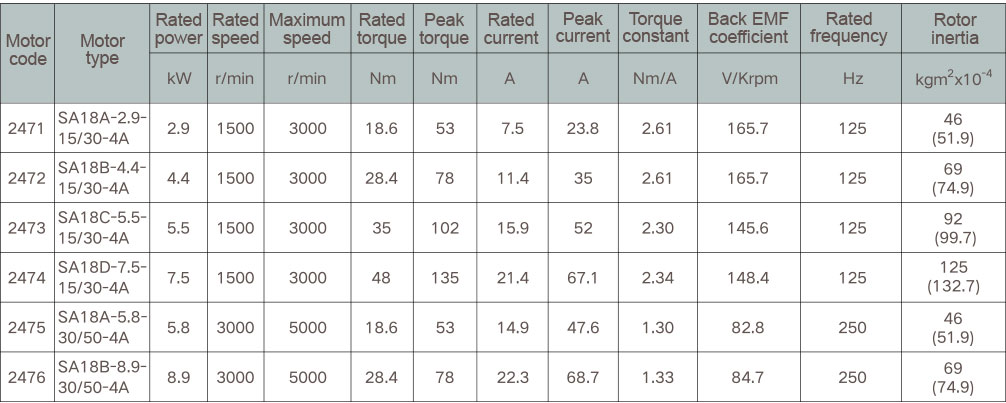

SA18 technical parameters
英文版SA产品页_25
Note: the rated torque refers to the continuous allowable torque when the product is installed on the 550*550*30 aluminum heat sink at the allowable ambient temperature (40°C). In the column of rotor inertia, the value in brackets is the rotor inertia with brake.

Characteristic curve
英文版SA产品页_26

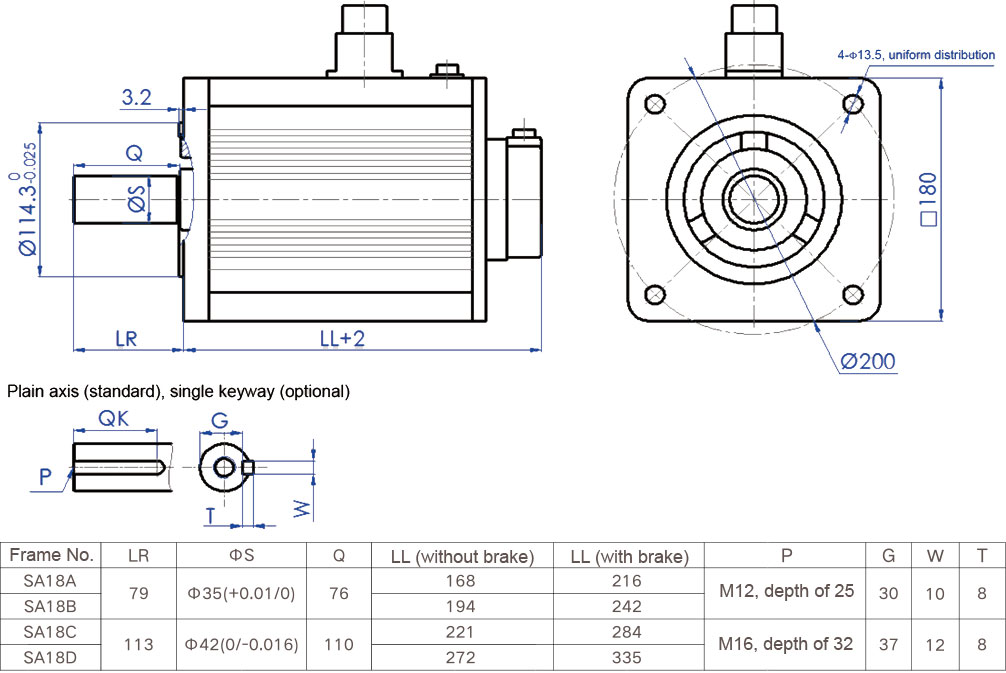

Motor outline drawing
英文版SA产品页_27

Product Technical Parameters

SA22 technical parameters
英文版SA产品页_28
Note: the rated torque refers to the continuous allowable torque when the product is installed on the 650*650*35 aluminum heat sink at the allowable ambient temperature (40°C). In the column of rotor inertia, the value in brackets is the rotor inertia with brake.

Characteristic curve
英文版SA产品页_29
Motor outline drawing
英文版SA产品页_30
