Motor Types and Technical Features

As the improvement of industrial machines and the continuous optimization of process, the demand for spindles of industrial machinery is increasingly evolving towards higher speed, faster acceleration and deceleration, more accurate servo, and more stable operation.

Therefore, REALLAND launched two products:
       SE series super-speed asynchronous spindle motor
       SF series super-speed permanent magnet synchronous spindle motor
SE and SF products have the following application and technical features:

Usability:                              high precision, low pulse vibration, fast acceleration, high-speed stability and silence

Electromagnetic property: high magnetic energy product, high acceleration and deceleration ability

Structure:                             REALLAND's super-speed structural frame technology ensures precision and                                                                  high-  speed require ments from the technical source

Manufacturability:               multi-pass rotor heat treatment, multi-stage rotor dynamic balance, high GAP .                                                                concentricity assurance process

Safety:                                  SF permanent magnet synchronous motor adopts IPM structure for magnetic steel,  and                                                under ultra-high speed simulation calculation, years of industrial operation, wh-  ich is                                                      safe and can achieve greater torque in full-field, with a higher torque/inertia ratio

Model Description

Example: SE08B-5.5-15/120-8-4A
资源 2mdpi

Technical Specifications

资源 18mdpi

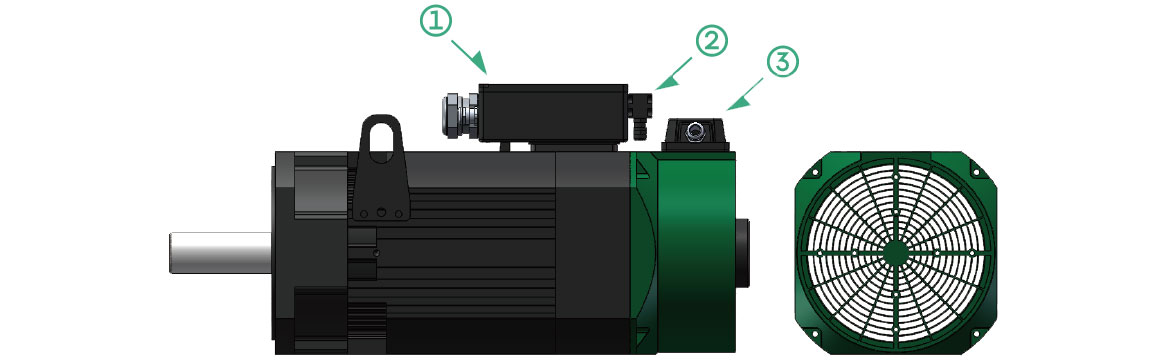

User Interface

SESF产品概览_26
 User wiring
资源 3mdpi
Encoder
资源 4mdpi
③ Fan
资源 5mdpi

SE05/SF05

Technical parameter
SE05                                                                                                      Motor type: Three-phase induction motor
资源 6mdpi
SF05                                                              Motor type: Three-phase permanent magnet synchronous motor
资源 8mdpi

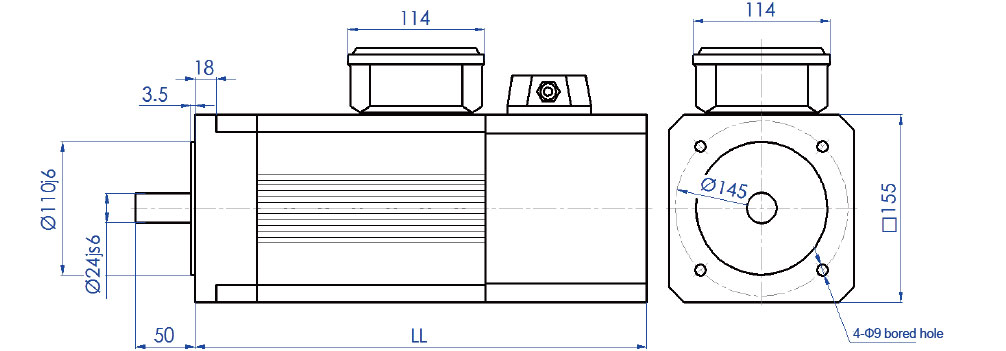

Motor outline drawing
未标题-1_02
资源 9mdpi

SE07

Technical parameter
                                                                                                               Motor type: Three-phase induction motor
资源 11mdpi

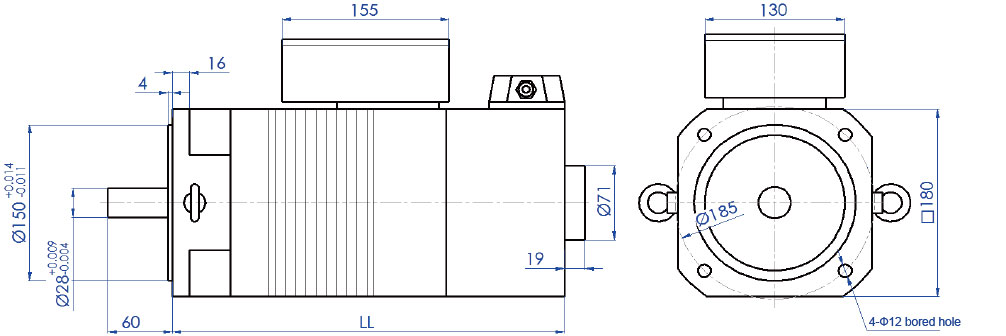

Motor outline drawing
未标题-1_03
资源 12mdpi

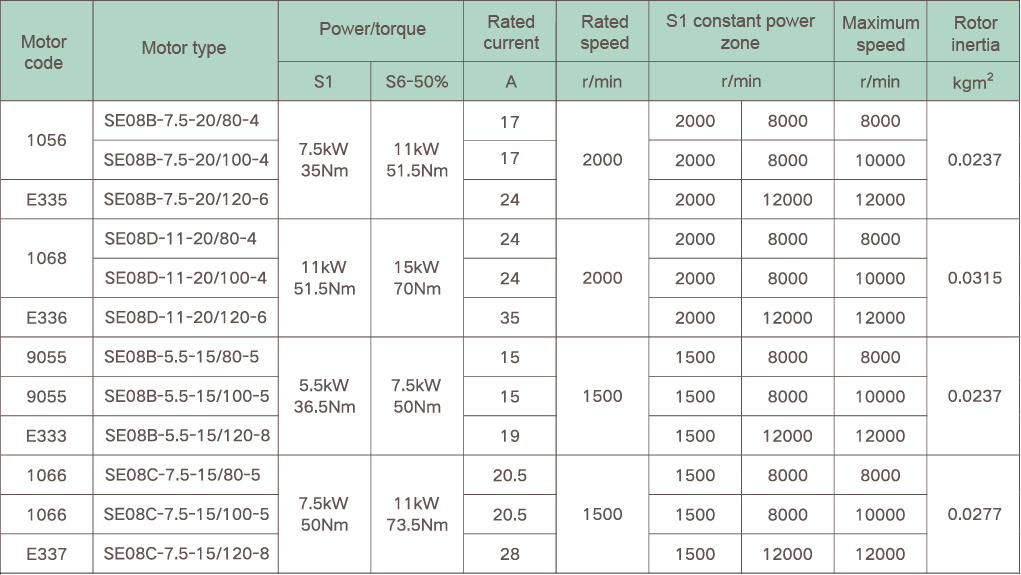

SE08

Technical parameter
                                                                                                               Motor type: Three-phase induction motor
资源 13mdpi

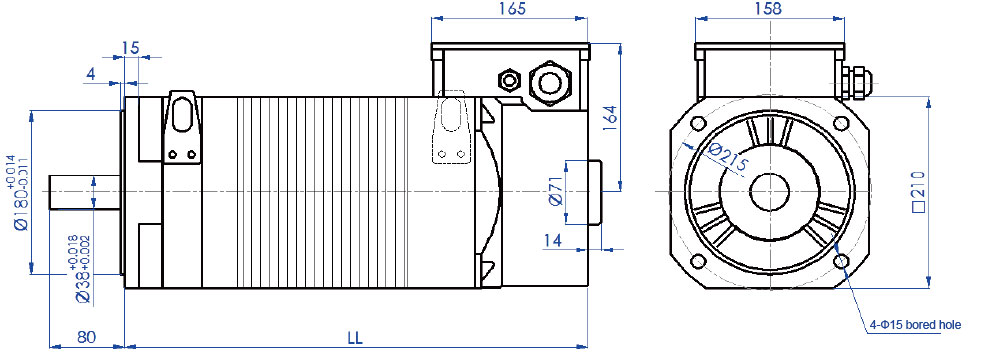

Motor outline drawing
未标题-1_04
资源 14mdpi

SE09

Technical parameter
                                                                                                               Motor type: Three-phase induction motor
资源 16mdpi

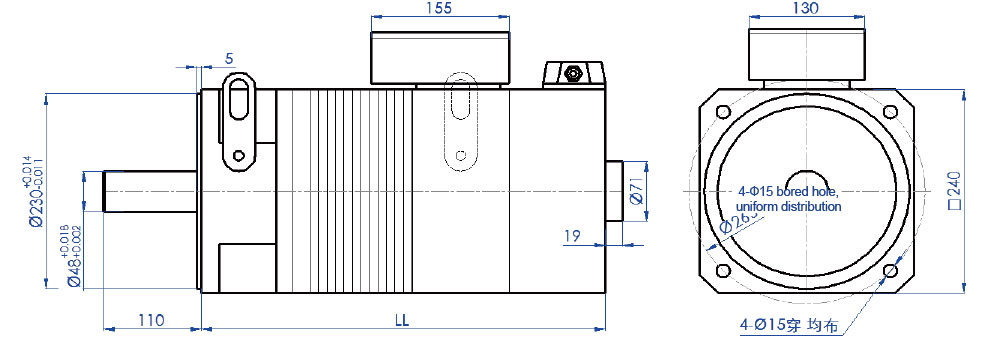

Motor outline drawing
未标题-1_05
资源 17mdpi
